Technical parameters
- Brand: XCMG
- Model: QY25L5
- Curb weight, kg-33000
- Dimensions, mm-12870h2550h3470
- Engine-SC9DF300. 2Q5
- Boom length, m-10,8-42
- Boom length with jib, m-51
- Engine power, kW/R*min - 221/1900
- Max torque, Nm / rpm-1400/1400
- Max speed, km / h-90
- Turning radius, m-10
- Ground clearance, mm - 260
- The angle of entry is 19
- The departure angle, -14
- Max climb, % - 45
- Max load capacity, kg-25 000
- Min working radius, m-3
- Load moment of the main boom folded, TM-1132
- Load moment of the main boom extended, TM-720
- Outrigger support circuit, m 5, 65x6, - 4
- Front axle load, kg-7400
- Load on the rear trolley, kg-25600
- Fuel consumption per 100 km: 30 l
- Tires : 315/80R22,5 (10 PCs + 1 spare)
- Additional equipment: anemometer, level gauge, warning lamp. Of function: virtual wall function, low temperature and high voltage warning
- Warranty: 1 year factory
- Country of origin: CHINA
- Factory manufacturer: Xuzhou Construction Machinery Group Co., Ltd
- Distributor: official authorized distributor in Uzbekistan: NAVOI PROM GRAND., LLC (NPG.LLC)
XCMG XCMG XCMG XCMG XCMG XCMG XCMG XCMG XCMG
QY25K5,QY25K5-I, QY25K5-II,QY25K5A, QY25K5S,QY25K5C, XCT25L5, XCA25
Description
XCMG XCT25L5 New model 2019
The five-piece "U-shaped" main boom has a maximum extension length of 42 m and an increased load capacity of 20%.
The low-speed, high-torque power system has a maximum load capacity of 45%. It is the strongest in the industry; the total fuel consumption per 100 kilometers is 30 liters.
A new energy-saving hydraulic system with two variable parameters, leading the industry in terms of loading and unloading performance.
Innovative boom system with ovoid profile and built-in sliders, which ensures smooth and reliable telescoping, as well as the highest structural strength.
This XCMG road crane has a K-shaped outrigger system built with the latest innovative solutions and developments.
New human-computer interaction system for more comfortable control.

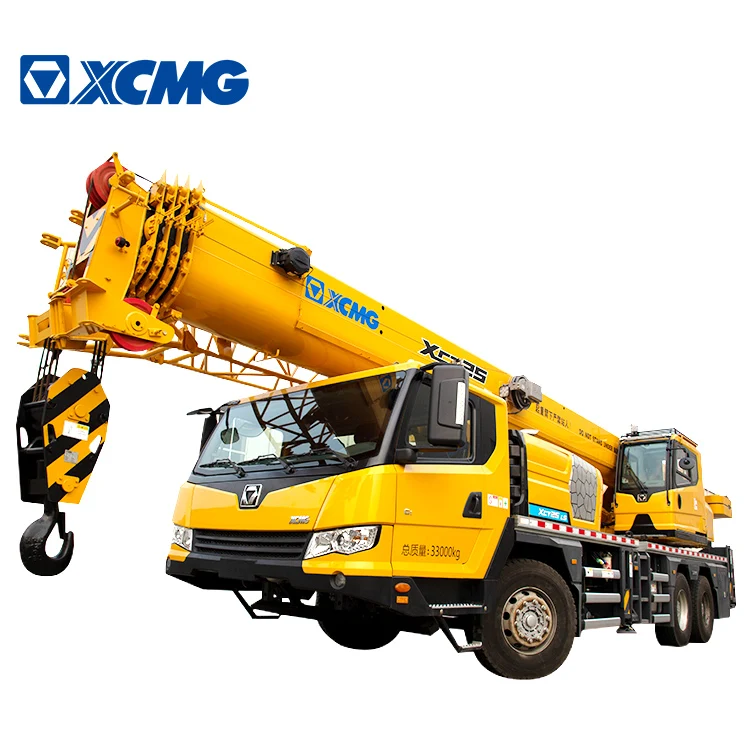

NEW 2019! XCMG XCT25L5_S TRUCK CRANE
